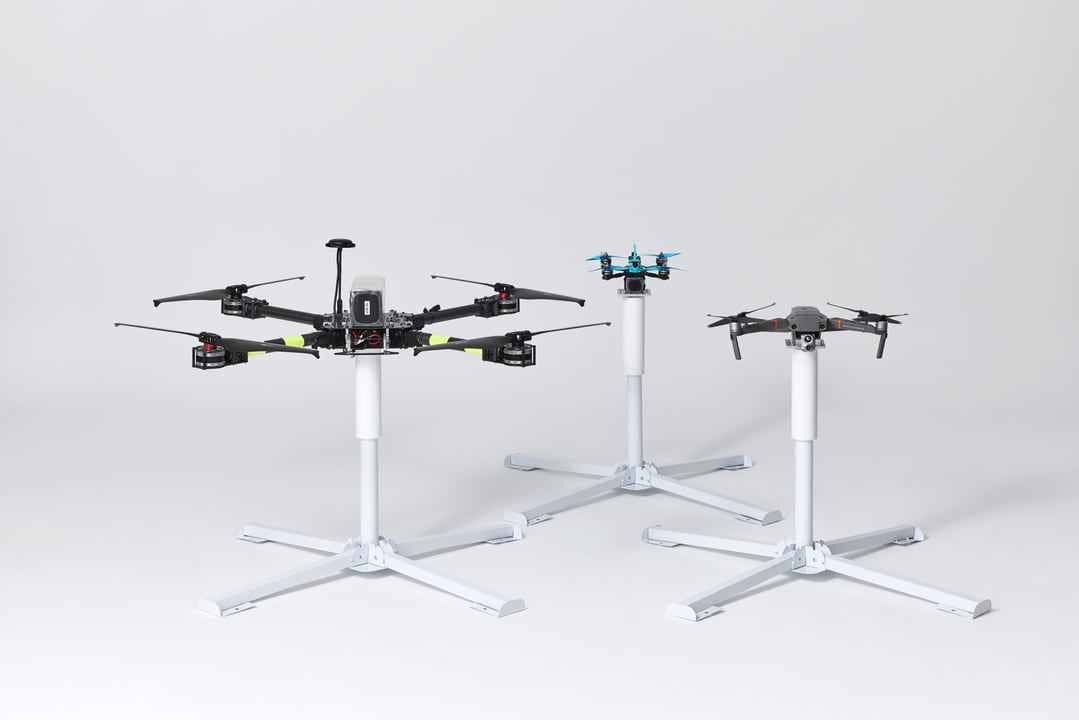

J.JIG
A drone test jig that simulates real flight conditions on the ground to catch abnormalities in key components. Fully mechanical, so it is simpler and more durable — and it folds up to go anywhere.
A drone jig lets you verify key components by simulating flight conditions on the ground. The new J.JIG is built entirely from mechanical parts, making it simpler and more reliable than the previous model.
Q&A
What size drones can be mounted? Thrust matters more than size. J.JIG adds about 180 g to the drone, and if the test thrust approaches 3 kgf (29 N), the jig may lift or slide.
Does it need maintenance? After long storage, grease the ball joints with a metal lubricant.
Specifications
| Roll / pitch | ±25° |
|---|---|
| Yaw | Infinite |
| Weight | 3 kg |
| Size (folded) | 12.5 × 12.5 × 47 cm |
| Size (unfolded) | 85 × 85 × 52 cm |
| Mounting plate | 8 × 8 cm |
| Patents | KR 10-2287069 / KR application 10-2024-0116253 |
